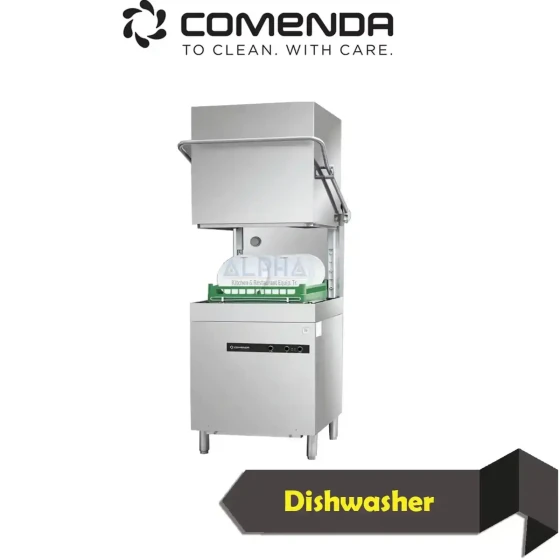

Hood Type Dishwasher
Product Details
A hood-type dishwasher taking 500 x 500 mm racks with 450 mm clearance, running two adjustable cycles at 90 and 120 seconds and using 2.7 litres per cycle from a 15-litre tank. It stands 1519 mm closed and 2010 mm with the hood raised, drawing 8500 W on 400 V three-phase.
Specifications
- Type: hood type (pass-through) dishwasher
- Size: 730 x 819 x 1519 mm, 2010 mm with hood open
- Rack size: 500 x 500 mm
- Clearance: 450 mm
- Wash programs: 2 adjustable cycles, 90 s and 120 s
- Water consumption: 2.7 litres per cycle
- Tank: 15 litres
- Supply: 400 V 3N+T, 50 Hz, 8500 W
Who it suits
For restaurants and hotels with a dedicated wash-up area and enough throughput to justify a pass-through machine. The 450 mm clearance is the practical advantage over an undercounter unit: tall pots and large platters fit, which they do not in a 360 mm chamber. Check the 2010 mm opening height, since a low ceiling or overhead shelf will block the hood.
Common questions
How much height does it need?
1519 mm closed but 2010 mm with the hood raised. Overhead shelves and low ceilings frequently prevent installation, so measure before ordering.
What is the advantage over an undercounter machine?
450 mm clearance takes tall pots and large platters, and racks pass through rather than being loaded from the front.
What supply does it require?
400 V three-phase at 8500 W. This is a substantial load that must be confirmed with an electrician.
How much water does it use?
2.7 litres per cycle, which is the figure to compare when assessing running cost.
